瑞薩電子RZ系列基于32位和64位Arm®的高端微處理器(MPU)為未來的智能社會提供了所需的解決方案。通過各種基于Arm Cortex®-A7、A9、A15、A53、A57及R4的設備,工程師可以輕松實現高分辨率人機界面(HMI)、嵌入式視覺、嵌入式人工智能(e-AI)和實時控制,以及工業以太網連接。
High-Performance MPU Realizing High-Speed and High-Precision Real-Time Control with EtherCAT

RZ/T2L is high-performance MPU that realizes high-speed and high-precision real-time control with EtherCAT. RZ/T2L has Arm® Cortex®-R52 @Max Frequency 800MHz and the large tightly coupled memory size (576 KB) is directly connected to the CPU, reducing the fluctuation in execution time that can occur when cache memory is used, and delivering deterministic and fast-response processing. RZ/T2L has seamless hardware architecture with RZ/T2M such as CPU core, peripheral functions and LLPP (Low Latency Peripheral Port) bus, and can be proposed for higher performance control systems such as AC servo. Also, RZ/T2L offers a scalable and compatible software platform with Renesas MPUs and MCUs. It enables customer utilizing their software assets for new model development.

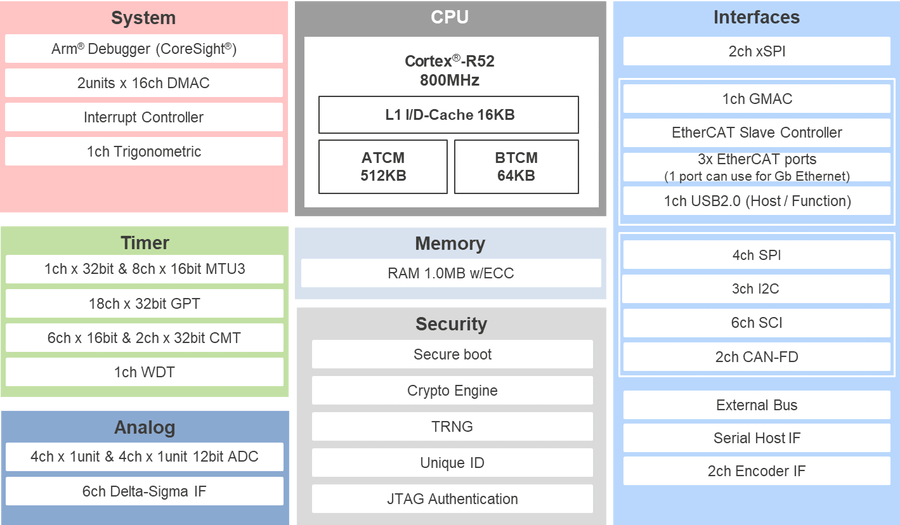

Features

•CPU: Arm® Cortex®-R52, maximum operating frequency 800MHz
•EtherCAT® slave controller
•Trigonometric function accelerator
•Memory: Tightly coupled memory 576KB (with ECC), Internal RAM 1MB (with ECC)
•Industrial Ethernet: EtherCAT® support
•Encoder interface: 2ch (supports A-format™, EnDat2.2, BiSS®-C, HIPERFACE® DSL, FA-CODER)
•Offering functional safety software up to SIL3

•Motor current loop < 1µs
•xSPI (Octa/Quad) support
•Serial Host I/F
•PWM: 3-phase complementary PWM output for dual motor control ?
•ADC: 12-bit x 2 units
•ΔΣ I/F: 6ch
•Package: 196-pin BGA
•Voltage: Core 1.1V , I/O 3.3/1.8V
