Home ? Product Center ? Other ? Switch ? Tactile Switch ? RTR-8 ?

The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.

The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.

Dust-proof Tactile Switches RTR-8

• Rating：12VDC 50mA

• Travel：1.5±0.3mm

• Life：50,000 cycles

• Contact Resistance：100mΩ MAX Initial

• Insulation Resistance：100mΩ min. 100VDC

• Dielectric Strength：250VAC(50/60Hz)FOR 1MIN

• Operating Force：120±40gf

• Waterproof Grade：IP6X

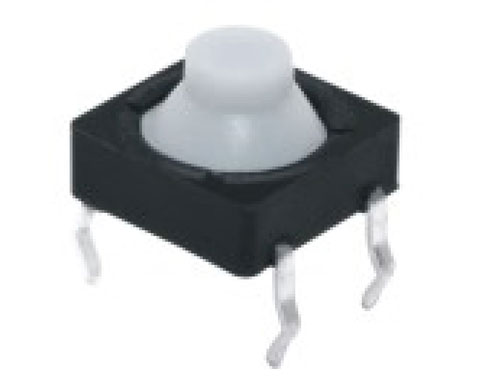

Dust-proof Tactile Switches RTR-8 Figure

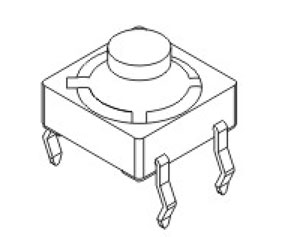

Tactile Switches Structure Diagram RTR-8

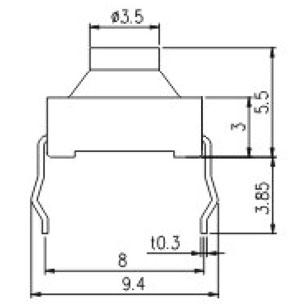

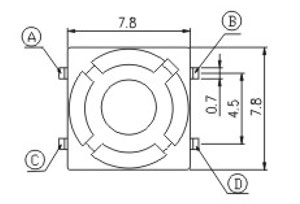

Dust-proof Switch RTR-8 Structure Diagram

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Travel	Life	Waterproof Grade	Download
RTR-8C-G-V-B	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	120±40gf	1.5±0.3mm	50,000 cycles	IP6X	NULL
RTR-8T-G-V-B	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	120±40gf	1.5±0.3mm	50,000 cycles	IP6X	NULL
